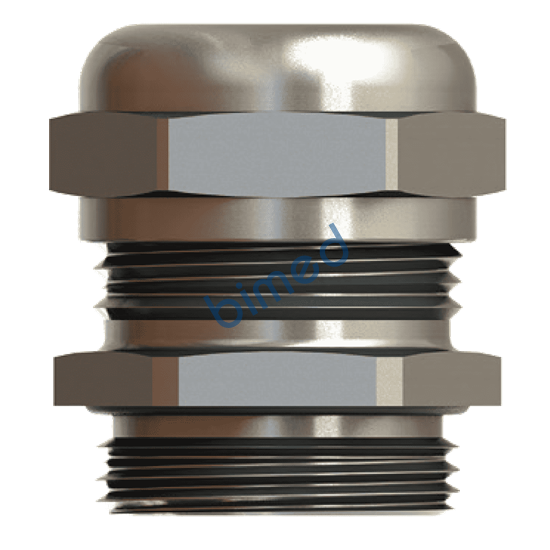

PG 11 / 7,0-12,0mm / TL=6,0mm

Double seal glands, compact design

GOST

GOST |

• For metal machines and housings.
• For standard industrial applications in harsh environments.
• Compact design.
• Double seal optimizes the cable range used.
• Easy assembly: install cable gland - insert cable - tighten cap.
• Special design for high quality strain relief and sealing, reliable performance for standard industrial applications.

Products specifications

Material	Body , Cap	Brass Nickel plated
	Seal	NBR , Silicone
	O-Ring	NBR, Silicone
Ingress Protection Rating		IP 68 - 5 Bar, 30 min
Flammability		V2 according to UL94
Operating Temperature	Seal	Permanent	Intermittent
	NBR	-20 °C to +100 °C	-40 °C to +150 °C
	Silicone	-60 °C to +140 °C	-60 °C to +180 °C
Thread Type
		Metric EN 60423
		PG DIN 40430
		Other thread types also available upon request.
Cable Type		Non Armoured
Accessories		Lock nuts
		Dome plugs
		Gaskets ( Washers )
Remarks		We recommend the use of lock nuts and gaskets to ensure IP rating for -
		rough surfaces or through holes.
		O-ring available in Metric and PG threads
		Accessories must be ordered separately.
Outer	Thread Size (Male)	PG 11
	Thread Length (TL)	6,0 mm
	Ø (D)	24,5 mm
Clamping Range	Outer Seal ; Ø min-max	7,0 - 12,0 mm
	Double Seal Ø min-max	4,5 - 7,0 mm
Spanner Width	Cap	22 mm
	Body	22 mm
max. Height (H)		22,5 mm
Part Number		BDSP-03

Order Coding
Part Number Mandatory	Seal Option
See table	S Silicone
Example
BDSP-03	S
